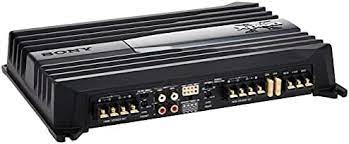

Sony XM-N1004

4-channel car amplifier

  • 1000W high power output
  • 70W x 4 (4 ohms), 85W x 4 (2 ohms), 175W x 2 (BTL)
  • Automatic Thermal Control
  • Low pass filter and high pass filter
  • Single sided connections
Category:

Rated Output Power, RMS 20 – 20000 Hz

MAX. CHANNEL POWER CONFIGURATION AT 4 OHM
4 x 170W

MAX. CHANNEL CONFIGURATION AT 4 OHM BTL (BRIDGE-TIED LOAD)
2 x 500W

MAX. CHANNEL POWER CONFIGURATION AT 2 OHMS
4 x 250W



Amplifier

CHANNEL CONFIGURATION
4ch;3ch;2ch

HIGH PASS FILTER
80Hz

HIGH PASS FILTER SLOPE
12dB/oct

LOW PASS FILTER
80Hz

LOW PASS FILTER SLOPE
18dB/oct



Details

CTA POWER OUTPUT
70W x 4

CTA SN RATIO
93dBA

MOSFET
YES

SUBSONIC HIGH PASS FILTER
12dB/oct

GOLD PLATED CONNECTORS
YES



General Features

FREQUENCY RESPONSE
5 – 50 kHz

TOLERANCE
+0/-3dB

SIGNAL TO NOISE RATIO
100dB

TOTAL HARMONIC DISTORTION AT 1 KHZ (%)
0.05
